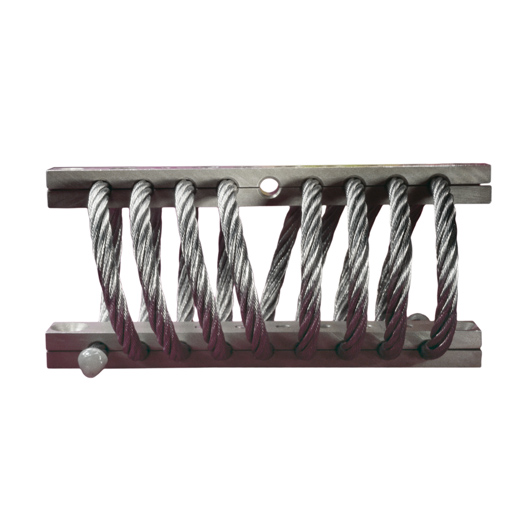

This range of mounts has a stainless steel cable wound between light alloy bars. The 8010 to 8060 versions are assembled using stainless steel clips and the 8080 to 8140 models have galvanised steel screws.
There are two or four mounting holes, per bar, smooth, counter sunk or tapped.
With a natural frequency between 5 and 25 Hz, damping up to 40% and high deflection in all directions, these dampers can absorb accelerations to equipment subjected to shock or drop.
Protection of equipment in containers, protection of racks and any fragile on board equipment.
Steel shock absorber supporting compression and pull loads.
– Shroud and base in aluminum alloy AG3. Satin finished.
– Stailess steel axle 18/8 passivated
– Stailess steel Spring and cushions 18/8
Weight (aprox):
MV-72: 60 gr
MV-73:160 gr
Metal shock absorber, low frequency, with semi-elastic retaining divide by means of metal mesh.
The V164 and V168 dampers have a cover, an AG3 mounting plate andan AU4G shaft. The assembly is chromatised.
The upper and lower stainless steel cushions are the resilient elements of the mounting. It has four Ø 8 mounting holes on the mounting plate and one M10 tapped hole on upper cover.
The VIBSOL mount is a simple and quick solution for machine tools offering a good shock absorption, and easy to install by sliding it under the base of the machine.
Unaffected by oils, cutting fluids, detergents, high and low temperatures with good resistance to fatigue.
It offers good stability for the suspended machine.
A constant natural frequency over a wide load range makes mount selection easy.
