Protection of electronic components and equipment, navigation devices, control panels, measuring instruments, control panels on airplanes, special vehicles, railroad, etc.

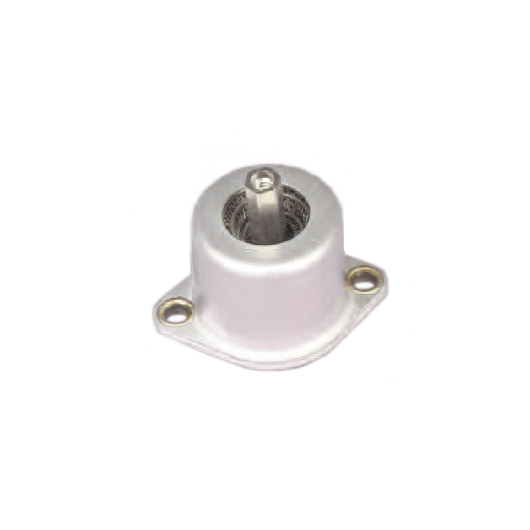

MV-71
Steel shock absorber supporting compression and pull loads.
– Shroud and base in aluminum alloy AG3. Satin finished.
– Stainless steel axle 18/8 passivated
– Stainless steel Spring and cushions 18/8
– Weight (aprox): 25g
Download PDF catalog
Related products
V118-MG V318
Read more
Have cast iron cover and base with 4 mountings holes in the base.
V118-MG and V318 mountings have cast iron cover and base with 4 mountings holes in the base and a central tapped hole in the cover.
The resilient elements are stainless steel wire mesh cushions:
– V118-MG and V318 have two cushions;
– V118-DG and V318-D have three cushions.
Download PDF catalog
VIBSOL
Read more
The VIBSOL mount is a simple and quick solution for machine tools.
The VIBSOL mount is a simple and quick solution for machine tools offering a good shock absorption, and easy to install by sliding it under the base of the machine.
Unaffected by oils, cutting fluids, detergents, high and low temperatures with good resistance to fatigue.
It offers good stability for the suspended machine.
A constant natural frequency over a wide load range makes mount selection easy.
Download PDF catalog
V164 / V168
Read more
The V164 and V168 dampers have a cover, an AG3 mounting plate andan AU4G shaft.
The V164 and V168 dampers have a cover, an AG3 mounting plate andan AU4G shaft. The assembly is chromatised.
The upper and lower stainless steel cushions are the resilient elements of the mounting. It has four Ø 8 mounting holes on the mounting plate and one M10 tapped hole on upper cover.
Download PDF catalog
VI786-A06 / VI700-A06 / VI700-B06
Read more
This suspension consists of rectangular cushions made of woven compressed.
This suspension system consists of rectangular cushions made of woven compressed stainless steel wire.
The VI786 have a Ø 9 bored screw hole, so that they can be mounted in collars with the diameters required by the user.
