Exhaust gas pipes of diesel engines.
Ship exhaust lines
Exhaust lines of thermal power plants, cogeneration.

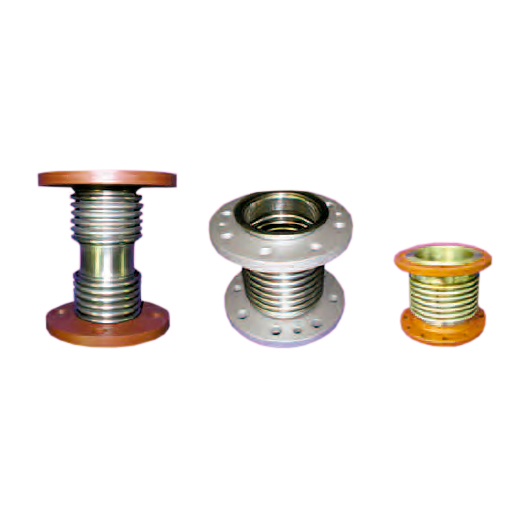

Compensadores
The basic element of an expansion joint is the corrugated metal bellows, annularly from a longitudinally welded tube, or seamless tube, in one, two or several lamella constructions. Designed and manufactured in compliance with EJMA standards.
Download PDF catalog
Related products
V120 / V120-D / V125 / V125-D
Series of all metal low profile mounts with one or two cushions.
Series of all metal low profile mounts with one or two cushions, working in compression only, permitting high dynamic overloads (using a load distribution plate). Mounts can be fixed to floor.
-Made of cups welded on a steel base with one or two stainless steel cushions (inox 18/8).
– The steel parts are painted to protect against corrosion.
Download PDF catalog
MV-32 / MV-33 / MV36
Steel shock absorber working in pull and compression.
Steel shock absorber working in pull and compression.
– Shroud, cup, cushions, axle and screw in stainless steel 18/8
– Damper elements in stainless steel yarn 18/8
– Protection: passivated
Weight (aprox):
MV-32: 140 gr
MV-33: 275 gr
MV-36: 640 gr
Download PDF catalog
V164 / V168
The V164 and V168 dampers have a cover, an AG3 mounting plate andan AU4G shaft.
The V164 and V168 dampers have a cover, an AG3 mounting plate andan AU4G shaft. The assembly is chromatised.
The upper and lower stainless steel cushions are the resilient elements of the mounting. It has four Ø 8 mounting holes on the mounting plate and one M10 tapped hole on upper cover.
Download PDF catalog
V402-MG
Has a cast iron upper cover and mounting plate and a high strength aluminium.
The V402-MG damper has a cast iron upper cover and mounting plate and a high strength aluminium alloy shaft.
The resilient element is a wonen stainless steel cushion.
The cast iron parts are painted.
