Standard V43, V44, V45 and V46 mountings have a cast steel base and a resilient element made from a stainless steel wire cushion.

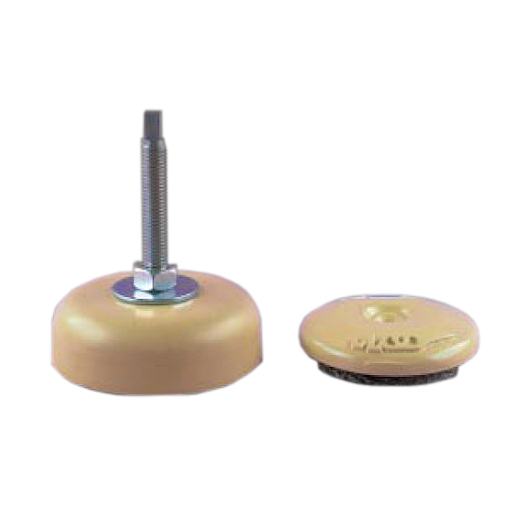

The version H includes a cup and a levelling stud. It can also be equiped with grip pads.
Version W differs from the standard version as it has a thicker cushion for greater flexibility.
This range with a natural frequency of 15 to 30 Hz can be used for mounting machine tools in harsh industrial environments.
They are unaffected by oil, temperature and fatigue and their life time is often the same as that of the machine.
The thicker metallic cushion of the version W, can be used for mounting forming tools (presses, shears, folding machines) and improves the vibration isolation level.
Medium frequency shock absorber that works in compression and tension, being able to withstand significant lateral forces.
VIBRAFLOT® is an antivibration system consisting of the following elements:
– metallic box containing a low frequency spring;
– elastomer sheet to isolate high frequencies;
– system to fift the floating floor and set its height.
Steel shock absorber supporting compression and pull loads.
– Shroud and base in aluminum alloy AG3. Satin finished.
– Stailess steel axle 18/8 passivated
– Stailess steel Spring and cushions 18/8
– Weight (aprox): 5g
Fully metallic shock absorber that works with traction and compression and allows large lateral displacements.
– Springs, central axis and steel cups
– Internal elements in stainless steel wire 18/8
– Treatment: Black phosphating
– Weight: 470 gr
