Isolation of electronic equipment, control instruments for off-road vehicles.
Military applications

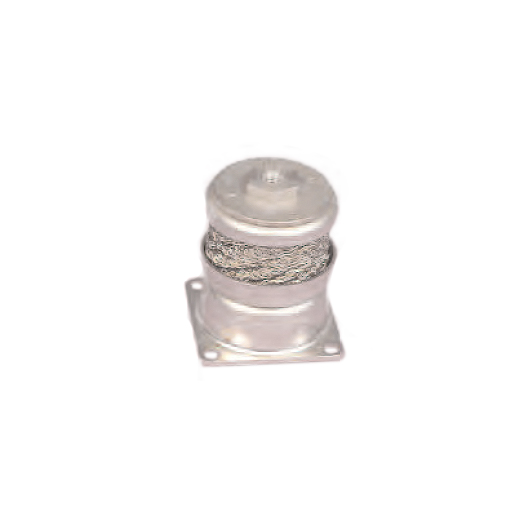

MV-32 / MV-33 / MV36
Steel shock absorber working in pull and compression.
– Shroud, cup, cushions, axle and screw in stainless steel 18/8
– Damper elements in stainless steel yarn 18/8
– Protection: passivated
Weight (aprox):
MV-32: 140 gr
MV-33: 275 gr
MV-36: 640 gr
Download PDF catalog
