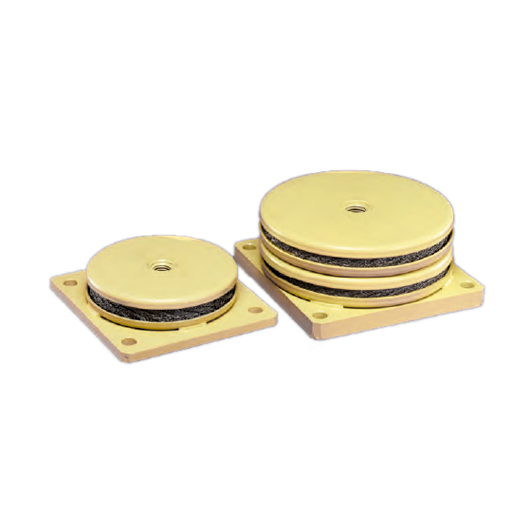

Series of all metal low profile mounts with one or two cushions, working in compression only, permitting high dynamic overloads (using a load distribution plate). Mounts can be fixed to floor.
-Made of cups welded on a steel base with one or two stainless steel cushions (inox 18/8).
– The steel parts are painted to protect against corrosion.
These mounts are designed for:
– suspension of presses,
– suspension of machine-tools which do not need levelling,
– suspension of transformers, diesel engines,
– suspension of rotating machines operating:
> 2500 rpm: V120 and V125,
> 2000 rpm: V120-D and V125-D.
The V402-MG damper has a cast iron upper cover and mounting plate and a high strength aluminium alloy shaft.
The resilient element is a wonen stainless steel cushion.
The cast iron parts are painted.
Metallic cushions are made from drawn, woven stainless steel wire that is compressed into a geometric shape. The Vibrachoc range has more than 1,000 standard metallic cushions of various sizes and characteristics.
As metallic cushions are easy to create, custom shapes and characteristics can be developed and produced on request.
V118-MG and V318 mountings have cast iron cover and base with 4 mountings holes in the base and a central tapped hole in the cover.
The resilient elements are stainless steel wire mesh cushions:
– V118-MG and V318 have two cushions;
– V118-DG and V318-D have three cushions.
VE isolators have a cylindrical stainless steel spring, a galvanized body, an elastomer noise reduction guide and steel rings or studs depending on the model.
The VE112 series has a steel cushion inside the spring.
