Industrial equipment, compressors, conveyors, vacuum pumps, generators, air conditioners, diesel engines, fans, fast cycle presses, machine tools.
Metrology: measuring equipment sensitive to external disturbances, optical instruments, etc.

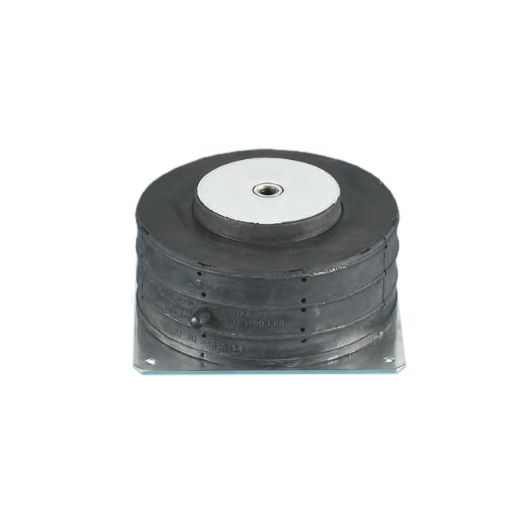

Pneumatic Mounts SLM
SLM pneumatic mounts are made from synthetic rubber and are laterally reinforced with steel springs. The base plate is bored with 4 smooth holes to allow a possible fixing on the ground and the valve allows to inflate the mount in the same way as an automobile tyre.
– Elastomer body (temperature range -30ºC to +180ºC) resitant. To oils, te majority of solvents and natural ageing.
– The top and bottom plates are available in both steel and aluminium.
Download PDF catalog
Related products
Evidgom®
The EVIDGOM® support can be assimilated to two thick conical membranes.
The EVIDGOM mounting is formed from two thick conical membranes, joined at their bases to create a highly elastic mounting.
There are three variations:
– All rubber EVIDGOM.
– EVIDGOM with bonded fixing.
– EVIDGOM with a diamond or square mounting plate (fixing plate supplied as a separate kit).
Download PDF catalog
22000 mount
The 22000 mount is made of two parts of elastomer bonded to a central tube.
The 22000 mount is made of two parts of elastomer bonded to a central tube.
– Interior reinforced: cylindrical tube.
– Elastomer: chloroprene. Range of five different stiffnesses.
Download PDF catalog
“Sandwich” Mounting
It consists of one or more layers of elastomer between two metal reinforcements.
The SANDWICH mounting comprises one or more layers of elastomer bonded to flat, parallel metallic plates. These mountings may be cylindrical or rectangular. They are designed to withstand very high compressive loads. The range of mechanical characteristics is governed by the hardness of the rubber and the number of intermediate metallic plates.
These mountings can support compression from 20 to 100 bars.
The metal plates usually receive a phosphate anti-corrosion treatment.
The elastomer is polychloroprene which provides a high resistance to atmospheric exposure.
Download PDF catalog
Traxiflex®
Comprises two metallic U armatures joined by two bonded rubber blocks.
The TRAXIFLEX mounting comprises two metallic U armatures joined by two bonded rubber blocks.
It is available in two versions: male/female and female/female.
