Engines, pumps, air conditioning, ventilators, transformers… The CUPMOUNT can also be used for suspended ceilings and for mobile applications.
Cupmount

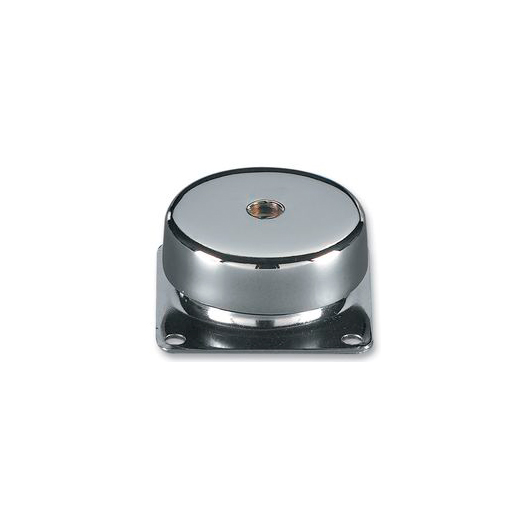

The CUPMOUNT is made of rubber bonded to two metal reinforcements of truncated form.
– Interior reinforcement with tapped hole.
– External reinforcements with square base (4 holes).
Download PDF catalog
Related products
Elastomer plates E3PEPL
These sheets may be used for anti-vibration mountings for equipment.
VIBRACHOC has a large number of molded parts but in some cases: prototypes, unknown specifications, it is often convenient to determine the suspensions by cutting the plates into pieces and gluing them.
Download PDF catalog
E1E11S**E* / E1E12S**E* / E1E13S**E*
VHDS elastomer able to carry loads under compression and traction.
VHDS elastomer able to carry loads under compression and traction.
Pedestal, washer and shaft in stainless steel.
Download PDF catalog
Elastomer moulded parts
These parts are usually supplied in VHDS.
These parts are usually supplied in VHDS (very high density silicone) rubber and the full reference should include:
– the letter S,
– the appropriate grade which corresponds:
– to the youngs modulus of the rubber under static compression in accordance with ASTM D945 (ref. 33 to 77),
– or to the stiffness measured on a part (ref. 16 to 25).
Download PDF catalog
Stabiflex
It is formed by a rubber ring attached to two metal reinforcements.
The STABIFLEX mounting comprises a conical rubber section bonded between inner and outer metal parts.
– Centre axis with threaded hole.
– Square (4 holes) or diamond base (2 holes) with clearance hole.
– Bonded natural rubber, anti-slip bead.
– Cup to protect the rubber and distribute the load.
