22000 mounts can be used in static or mobile applications, such as:pumps, compressors, generators, electronic equipment, HVAC equipment, engines with internal combustion, transmissions, plant cabs, radiators, etc.

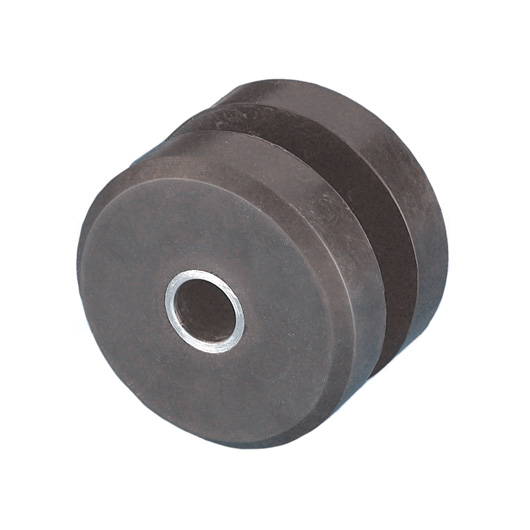

22000 mount
The 22000 mount is made of two parts of elastomer bonded to a central tube.
– Interior reinforced: cylindrical tube.
– Elastomer: chloroprene. Range of five different stiffnesses.
Download PDF catalog
Related products
Triaxdyn
Comprises two elastomers which are assembled into a casting and pre-loaded.
This anti-vibration mounting comprises two elastomers which are assembled into a casting and pre-loaded.
The mounting is designed to offer:
– a large deflection (in axial),
– different stiffness in three axis,
– built-in stops to limit movement in all directions.
Note: The mount body can be modified to offer alternative interface dimensions providing the internal interface with the elastomer is maintained.
Download PDF catalog
Radiaflex®
The work in shear of these plots lends itself very well to the vibratory isolation.
– Metalwork: Mild steel, plated.
– Natural rubber, bonded, cylindrically shaped.
– Welded fixings: 5 styles (single sided threaded stud, single sided threaded hole, double threaded stud, double threaded holes, combination fixing).
In Europe, we often use different screw standards than our french standard.To better satisfy this need, Paulstra has created a new range TRadiaflex Europe. This range is available with the 4 usual welded fixings and with a new fixing: the threaded hole stop.
Download PDF catalog
E1E11S**E* / E1E12S**E* / E1E13S**E*
VHDS elastomer able to carry loads under compression and traction.
VHDS elastomer able to carry loads under compression and traction.
Pedestal, washer and shaft in stainless steel.
Download PDF catalog
Disc drive suspensions
A silicone (VHDS) elastomer with a bonded metal insert.
A silicone (VHDS) elastomer with a bonded metal insert. The legs have tangs which enable each leg to be pulled through mounting holes in the equipment. The suspended component can then be attached with an M3 screw through the insert. The tangs can be cut off after insertion.
