Low frequency steel shock absorber working in compression.
Active isolation of equipment mounted on the ground that rotate at low speed (above 900 rpm), such as fans, electric motors, pumps, etc.
Passive isolation of sensitive equipment mounted on the ground, such as measuring devices, laboratory equipment, with or without interposition of stabilizing mass.
Steel shock absorber supporting compression and pull loads.
– Shroud and base in aluminum alloy AG3. Satin finished.
– Stailess steel axle 18/8 passivated
– Stailess steel Spring and cushions 18/8
– Weight (aprox): 5g

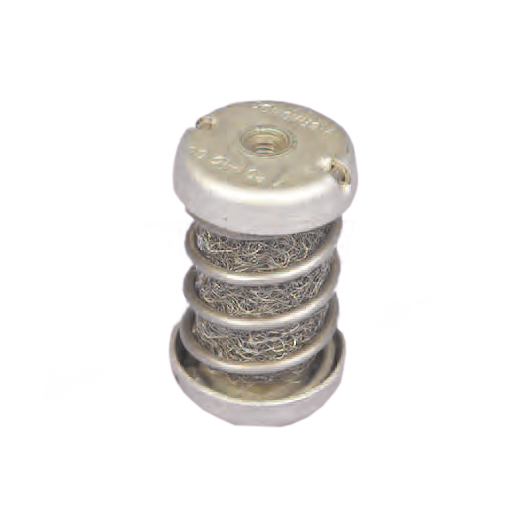

A single acting telescopic anti-vibration manufactured with a helicoil spring and stainless steel woven cushion. Protection, paint.
Standard V43, V44, V45 and V46 mountings have a cast steel base and a resilient element made from a stainless steel wire cushion.
The version H includes a cup and a levelling stud. It can also be equiped with grip pads.
Version W differs from the standard version as it has a thicker cushion for greater flexibility.
Metal shock absorber, low frequency, with semi-elastic retaining divide by means of metal mesh.
