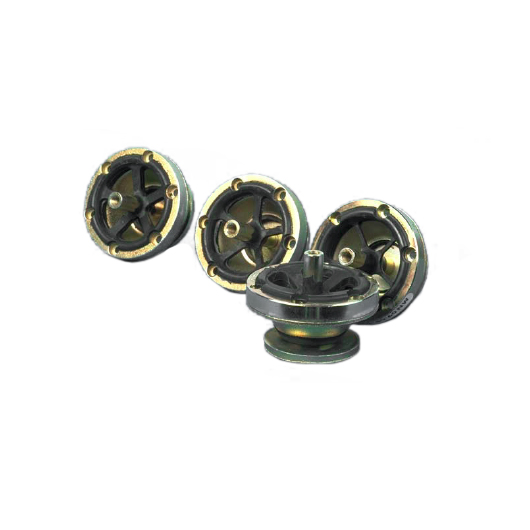

Flexible mountings for low loads MN08 – MN09
The main role of these mountings is to isolate vibration. A snubber system limits the movement of the suspended mass (10 mm), however the loads developed in this case, are high.
A wide load range from 5 to 320 N depending upon the application.
Download PDF catalog
Related products
Pipe isolators
Maintaining the link between pipe and structure providing vibration isolation.
Natural frequencies under nominal load:
– axial: 10 to 30 Hz
– radial: 15 to 40 Hz
Maximum displacement in axial shock: ± 5 mm
Temperature range: 0 to 175° C
Download PDF catalog
Flexible mountings for low loads MN 75 composite
They ensure a low level of vibratory transmission in a broad frequency band.
These mountings were developed to handle small loads under large deflection (75 mm) and provide a low vibration transmission over a wide frequency range (up to 500 Hz).
The system developed provides this dual function effectively and without compromise.
Download PDF catalog
Laminated mountings
These assemblies can withstand high compression loads.
These assemblies can withstand high compression loads (along Oz): up to1,000 tons/sq.meter.
They can absorb shear deformation (along Ox and Oy) of 50 to 100% of their height.
Cylindrical or annular type assemblies can also withstand torsional displacement around axis Oz.
In rotation around axes Oy and Ox, these mountings enable angular or low amplitude rotation errors (approximately 1°).
Download PDF catalog
Flexible mountings for high loads MN 75 elastomer
Elastomer isolators designed for acoustic isolation and shock protection.
– Natural frequency (vertical and lateral) under nominal load: 4 to 5.5 Hz.
– Maximum displacement under shock:75 mm all in directions.
– Mechanical strength: 30 g
