Elastomer spring bearing assembly.
Connecting rod pivot.
Laminated bushes

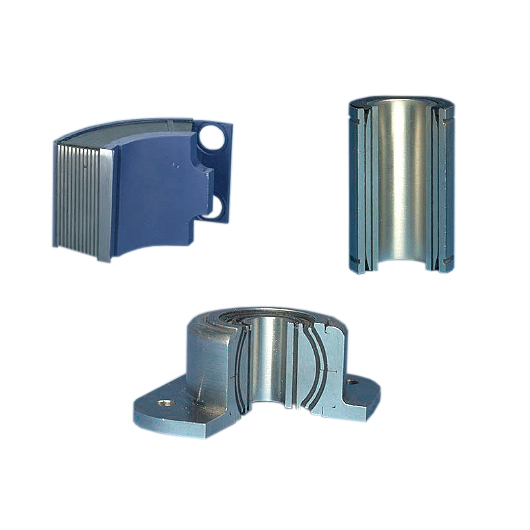

Laminated BUSHES use the same principle as other laminated bearings. Importance is primarily given to radial load capability along Ox and Oy which may be up to 100 tons.
Movement is allowed around an axis Oz or a centre of rotation O. Angular deflection is in the order of 30°.
Download PDF catalog
Related products
Flexible mountings for high loads MN 45
A load range of between 30 to 1.080 kg.
A load range of between 30 to 1,080 kg, depending on the different configuration and shock specification.
Download PDF catalog
Flexible mountings for high loads MN 10 – MN 15
A load range of between 20 to 5000 kg.
– Vertical own frequencies under nominal loads of 5 to 7 Hz.
– Own lateral frequencies under nominal loads of 3 to 6 Hz.
– Stop after 10 mm of displacement. Maximum force on the top of 30 g
Download PDF catalog
Flexible mountings for low loads MN08 – MN09
The main role of these mountings is to isolate vibration.
The main role of these mountings is to isolate vibration. A snubber system limits the movement of the suspended mass (10 mm), however the loads developed in this case, are high.
A wide load range from 5 to 320 N depending upon the application.
Download PDF catalog
Flexible mountings for high loads MN 75 elastomer
Elastomer isolators designed for acoustic isolation and shock protection.
– Natural frequency (vertical and lateral) under nominal load: 4 to 5.5 Hz.
– Maximum displacement under shock:75 mm all in directions.
– Mechanical strength: 30 g
