Elastomer rings for linking and positioning of equipment while maintaining acoustic discretion and protection from shocks.

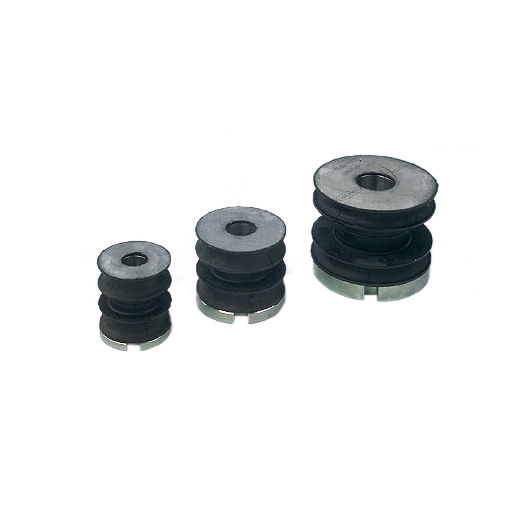

Decoupling washers
A decoupling washer is composed of:
– 2 bonded elastomer washers
– 1 stainless steel anti-shock washer
– 1 stainless steel preload spacer
Download PDF catalog
Related products
Laminated mountings
Read more
These assemblies can withstand high compression loads.
These assemblies can withstand high compression loads (along Oz): up to1,000 tons/sq.meter.
They can absorb shear deformation (along Ox and Oy) of 50 to 100% of their height.
Cylindrical or annular type assemblies can also withstand torsional displacement around axis Oz.
In rotation around axes Oy and Ox, these mountings enable angular or low amplitude rotation errors (approximately 1°).
Download PDF catalog
Flexible mountings for high loads MN 75 elastomer
Read more
Elastomer isolators designed for acoustic isolation and shock protection.
– Natural frequency (vertical and lateral) under nominal load: 4 to 5.5 Hz.
– Maximum displacement under shock:75 mm all in directions.
– Mechanical strength: 30 g
Download PDF catalog
Flexible mountings for low loads MN08 – MN09
Read more
The main role of these mountings is to isolate vibration.
The main role of these mountings is to isolate vibration. A snubber system limits the movement of the suspended mass (10 mm), however the loads developed in this case, are high.
A wide load range from 5 to 320 N depending upon the application.
Download PDF catalog
Anti-Vibration mountings for avionics and electronics
Read more
Applications range from vibration isolation to shock-protection of electronic apparatus.
Models are available in different elastomers: silicon, fireproofed silicon, fluorosilicon or neoprene, to meet the requirements of the main aeronautics standards (FAR 25 – AIR 7304 – MIL STD 810 – C 172 C -MAR 508 s.o.).
Covering a natural frequency range of 15 to 50 Hz, their applications range from vibration isolation to shock-protection of electronic apparatus and also aircraft fuselage and helicopter cockpit mountings.
