Protecting electronic equipment, navigation equipment, instrument panels, measuring instruments, control panels on aircraft, road vehicles and railway trains.

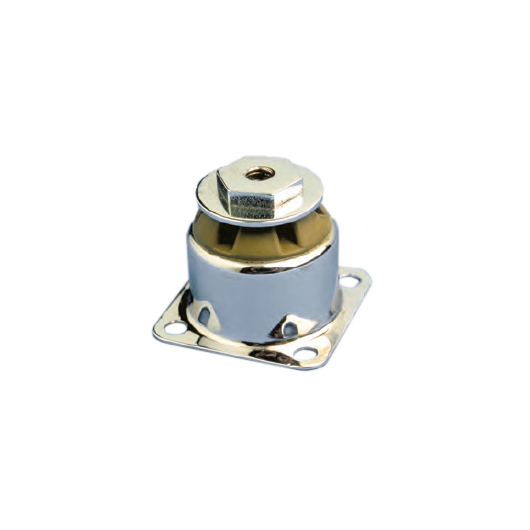

E1E11S**E* / E1E12S**E* / E1E13S**E*
VHDS elastomer able to carry loads under compression and traction.
Pedestal, washer and shaft in stainless steel.
Download PDF catalog
Related products
Paulstradyn®
Anti-vibration decoupling for fixed equipment.
– Better than 90% isolation at 1.500 rpm(25 Hz).
– Constant height over wide load range.
– Stabilised characteristics during Service Life.
– Simple to fit.
– 400 hours protection against salt spray*.
– Design.
Download PDF catalog
Disc drive suspensions
A silicone (VHDS) elastomer with a bonded metal insert.
A silicone (VHDS) elastomer with a bonded metal insert. The legs have tangs which enable each leg to be pulled through mounting holes in the equipment. The suspended component can then be attached with an M3 screw through the insert. The tangs can be cut off after insertion.
“Sandwich” Mounting
It consists of one or more layers of elastomer between two metal reinforcements.
The SANDWICH mounting comprises one or more layers of elastomer bonded to flat, parallel metallic plates. These mountings may be cylindrical or rectangular. They are designed to withstand very high compressive loads. The range of mechanical characteristics is governed by the hardness of the rubber and the number of intermediate metallic plates.
These mountings can support compression from 20 to 100 bars.
The metal plates usually receive a phosphate anti-corrosion treatment.
The elastomer is polychloroprene which provides a high resistance to atmospheric exposure.
Download PDF catalog
Pneumatic Mounts SLM
It consists of a thick chamber of synthetic rubber.
SLM pneumatic mounts are made from synthetic rubber and are laterally reinforced with steel springs. The base plate is bored with 4 smooth holes to allow a possible fixing on the ground and the valve allows to inflate the mount in the same way as an automobile tyre.
– Elastomer body (temperature range -30ºC to +180ºC) resitant. To oils, te majority of solvents and natural ageing.
– The top and bottom plates are available in both steel and aluminium.
