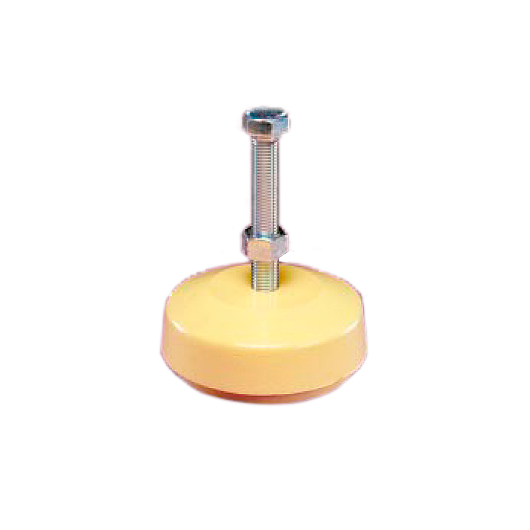

This machinery mount, with adjustable height, is used for machine tools and other rotating machine.The V47 and V47D are designed for presses and printing machines.
V47 / V47D / V47T / V47Q
Anti-vibration mount available with a constant natural frequency over a wide load range.
Cast iron base and levelling device.
Conical wire mesh cushion, capable of narrying lateral loads.
V47D version has a stack of two cushions with a cast iron separating cup.
V47T and V47Q have three and four metal cushions respectively.
