Active insulation of elevator machinery and in general of any type of machinery, whether stationary or on board, that needs an adjustable retention system or precompression system to facilitate its assembly without lifting the equipment.

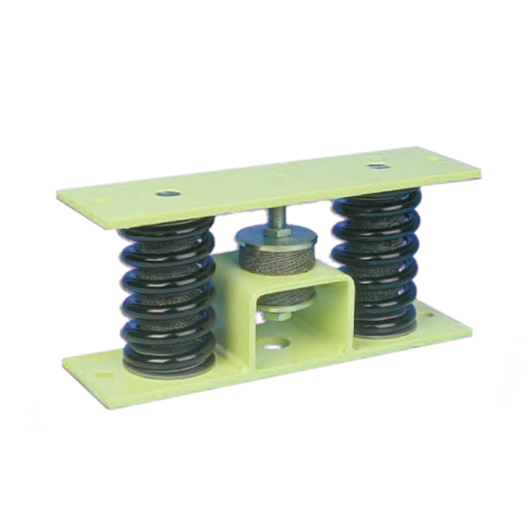

Shock absorbers with retaining system
– Low frequency and lateral stiffness shock absorbers working in compression with elastic retaining system.
– Steel bases. Spring: high-strength steel
– Damper pad: stainless steel 18/8
– Captive system (flexible limiter in stainless steel cushion)
Download PDF catalog
Related products
Shock absorber for transformers
Read more
They consist of two steel soles and two high-strength metal springs.
This range of shock absorbers consists of two steel soles and two high-strength metal springs, light alloy joint washers and a metal cushion in stainless steel wire on each spring. An external protective sheet prevents possible intrusions of materials that stiffen the shock absorber.
All steel parts are protected by a layer of paint. These elements are very easy to assemble and adapt to the needs of the equipment.
They comply with the ISO 9001-2000 standard.
Download PDF catalog
V164 / V168
Read more
The V164 and V168 dampers have a cover, an AG3 mounting plate andan AU4G shaft.
The V164 and V168 dampers have a cover, an AG3 mounting plate andan AU4G shaft. The assembly is chromatised.
The upper and lower stainless steel cushions are the resilient elements of the mounting. It has four Ø 8 mounting holes on the mounting plate and one M10 tapped hole on upper cover.
Download PDF catalog
MV-72 / MV-73
Read more
Steel shock absorber supporting compression and pull loads.
Steel shock absorber supporting compression and pull loads.
– Shroud and base in aluminum alloy AG3. Satin finished.
– Stailess steel axle 18/8 passivated
– Stailess steel Spring and cushions 18/8
Weight (aprox):
MV-72: 60 gr
MV-73:160 gr
Download PDF catalog
Metallic cushions
Read more
Metallic cushions are made from drawn, woven stainless steel wire.
Metallic cushions are made from drawn, woven stainless steel wire that is compressed into a geometric shape. The Vibrachoc range has more than 1,000 standard metallic cushions of various sizes and characteristics.
As metallic cushions are easy to create, custom shapes and characteristics can be developed and produced on request.
