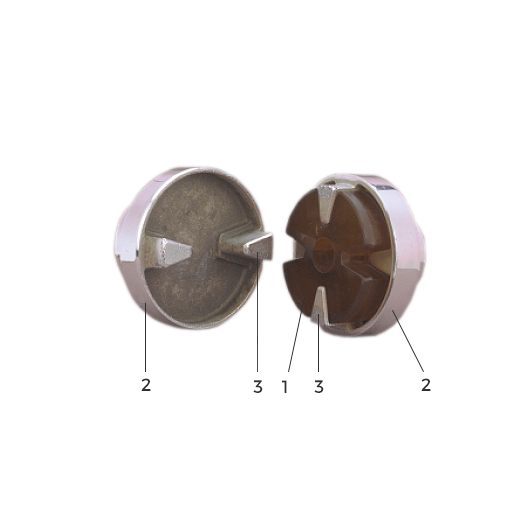

Flexible element 1: polyurethane in the form of a Maltese cross.
Flange 2: cast iron with drive segments 3 supplied unbored (except633054 and 633055).
Variations : For assemblies with a ring or spacer, consult our technical manuals.
The MPP coupling is designed with the following features:
– Push fit assembly.
– Smooth, compact cylindrical shape, without protrusions.
– The flexible element operates under compression,
– Safe in use.
– Temperature range – 30°C to + 70°C in continuous operation.
Advantages:
– Reduced size.
– Easy to use.
Recommendation:
It is recommended that the coupling should not be subjected to axial tension which might cause the flexible element to slip off the drive segments on the flanges.
Flexible element:
1 Metallic bobbins linked together by rayon fibres.
2 The whole unit 1 is potted in natural rubber and is hexagonal.
Flange 3: forged steel.
Flexible element comprising:
1 Natural rubber in the form of a cross.
2 A floating aluminium or steel star, whose arms are bonded to the rubber.
Mountings:
Two aluminium bosses, bonded to the rubber which will be attached to one of the machines.
Two bosses bonded to the rubber which will be attached to the other machine.
Flexible element:
1 Precompressed natural rubber.
2 Bonded metal spacers.
3 Precompression band (to be removed after installation).
Flange:
4 Die-cast steel specially bored to fit the separate hub.
5 Universal separate hub (not supplied by PAULSTRA).
Flexible element:
1 Formed of solid natural rubber.
2 External steel surround, bonded to the rubber.
3 Triangular hub: a hollow hub bonded to the rubber and attached to the flange 5, or a solid hub which accommodates a grooved or keyed shaft.
Steel flanges:
4 round.
5 triangular.
